I. PROPERTIES
| Colour Index |
|
Solvent Yellow 160:1 |
| Generic class |
|
Coumarin dyestuff |
| Form supplied |
|
powder |
| Appearance |
|
yellow with a green cast |
| Shade tolerance |
|
DE ≤ 1.0 (tested in GP-PS with 2.0% TiO2 and 0.2% dyestuff; CIELab; DIN 6174) |
| Color strength tolerance |
|
?2.5% (measured insolution by extinction; according to DIN 55978) |
| Density (23°C / 73°F) |
|
1.32 g/cm3 |
| Bulk weight |
|
0.25 g/cm3 (according to DIN 53194) |
| Melting point |
|
approx. 209°C / 408°F |
II. LIGHTFASTNESS (in GP-PS)
Xenotest (DIN 53387)
| transparency |
6 |
| opaque |
3-4 |
Fade-O-meter (AATCC 16A-1964)
| transparency |
L5 |
| opaque |
L3 |
Amount Applied
| transparency |
0.05% dyestuff |
| opaque |
0.05% dyestuff + 1.0% TiO2 |
Generally, the values stated can also be applied to SAN, PMMA, PC and rigid PVC. For modified polystyrene, especially ABS, the fastness properties are lower.
III. MAIN FIELDS OF APPLICATION
Fluorescent transparent and opaque dyeing of PS, SAN, PMMA, PC, rigid PVC, CA and CAB. Opaque dyeing of SB, ABS and ABS/PC blends.
IV. STORAGE STABILITY
Unlimited if stored properly.
V. RESISTANCE TO RADICAL-FORMING AGENTS
| Porofor N |
+ |
| Methyl ethyl ketone-P |
+ |
| Dilauroyl-P |
+ |
| Dibenzoyl-P |
+ |
+ = resistant;
- = not resistant
Porofor N = Azo-bis(isobutyronitrile)
P = peroxide
Amount Applied
0.1% radical-forming agent
0.05% dyestuff in MMA
VI. FASTNESS TO BLEEDING
Suitability for Dyeing Household Utensils
No staining of distilled water, 2.0% by weight acetic acid, 10.0% by volume ethanol, coconut oil or peanut oil in our test on 0.1% dyeing of PS, ABS, SAN, PMMA, PC and rigid PVC. (The tests used saturated strips of filter paper for 5 hours at 50 °C).
VII. PRODUCT SPECIFICATION
Since products may be modified, we advise you to refer to the product specification which is available on request.
VIII. SOLUBILITY
(approximate figures)
| Solubility in g/l at room temperature (23°C / 73°F) |
| Water |
Acetone |
Benzyl alcohol |
Butyl acetate |
Ethanol |
Methyl methacrylate |
Methylene chloride |
Styrene (monomer) |
Xylene |
| Insoluble |
2.5 |
12 |
1.5 |
0.4 |
2.0 |
70 |
4.5 |
1.5 |
IX. HEAT STABILITY
(approximate figures; according to DIN 53772)
| |
PS |
SB** |
ABS |
SAN |
PMMA |
PC |
PA6 |
PA6.6 |
PET |
PBT |
PPO |
| A* in °F |
570 |
570 |
460-500 |
570 |
570 |
660 |
570 |
|
540 |
|
570 |
| B* in °F |
570 |
570 |
460-500 |
540 |
570 |
660 |
570 |
|
|
|
570 |
| A* in °C |
300 |
300 |
240-260 |
300 |
300 |
350 |
300 |
|
280 |
|
300 |
| B* in °C |
300 |
300 |
240-260 |
280 |
300 |
350 |
300 |
|
|
|
300 |
* A = 0.05% dyestuff
* B = 0.05% dyestuff + 1.0% TiO2
** Values not for styrene-butadiene block copolymer
- = not recommended

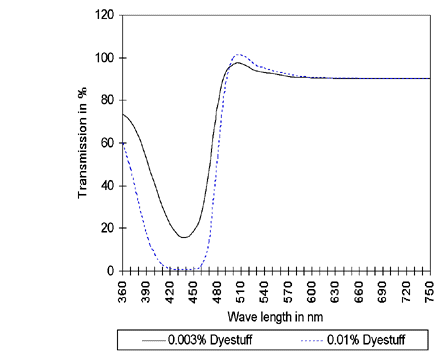

Transmission Curve
MACROLEX Fluorescent Yellow 10GN
in GP-PS (2 mm thickness)

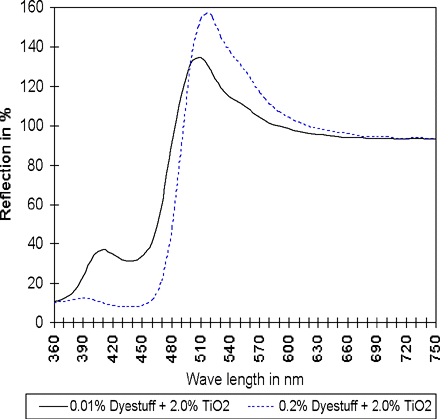

Reflection Curve
MACROLEX Fluorescent Yellow 10GN
in GP-PS
 |
